Description

🚀 Overview:

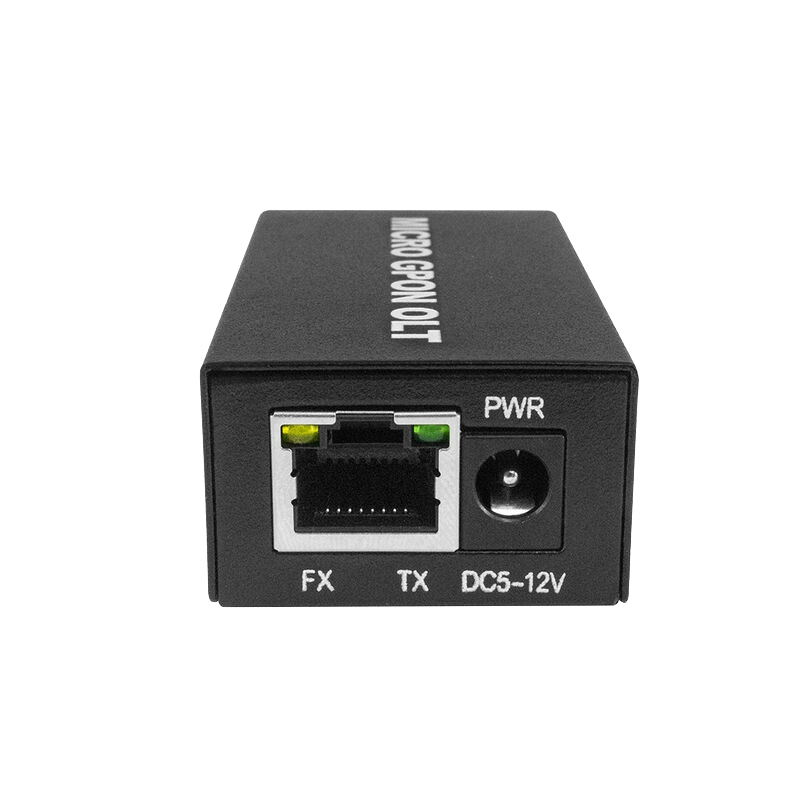

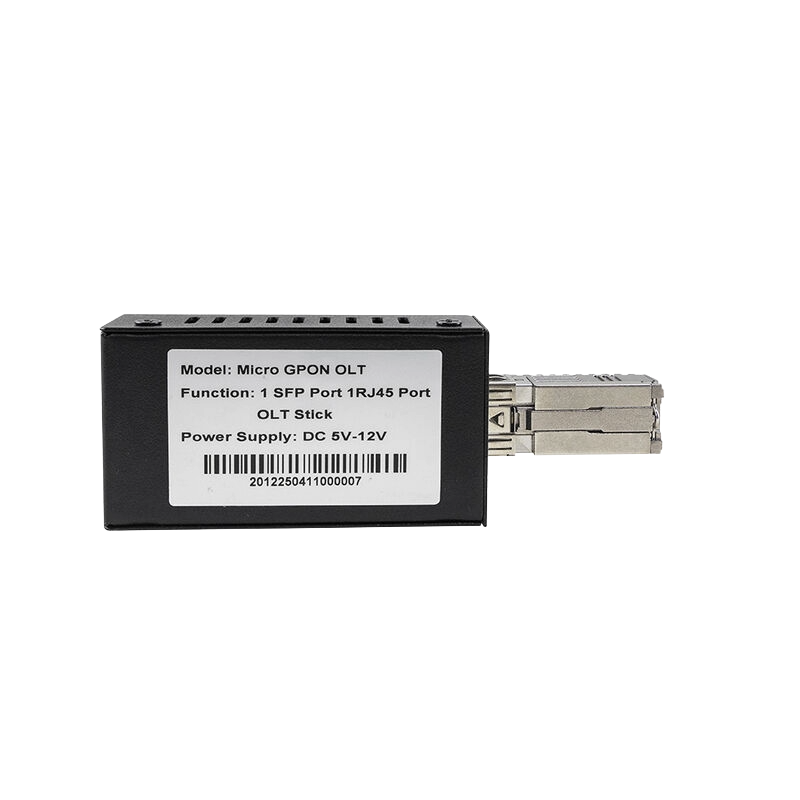

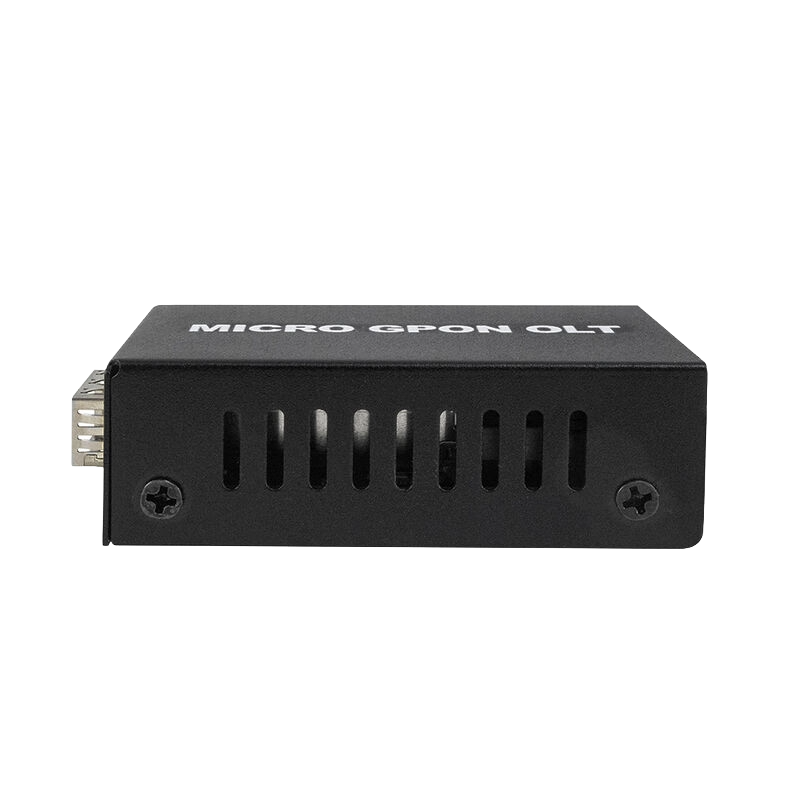

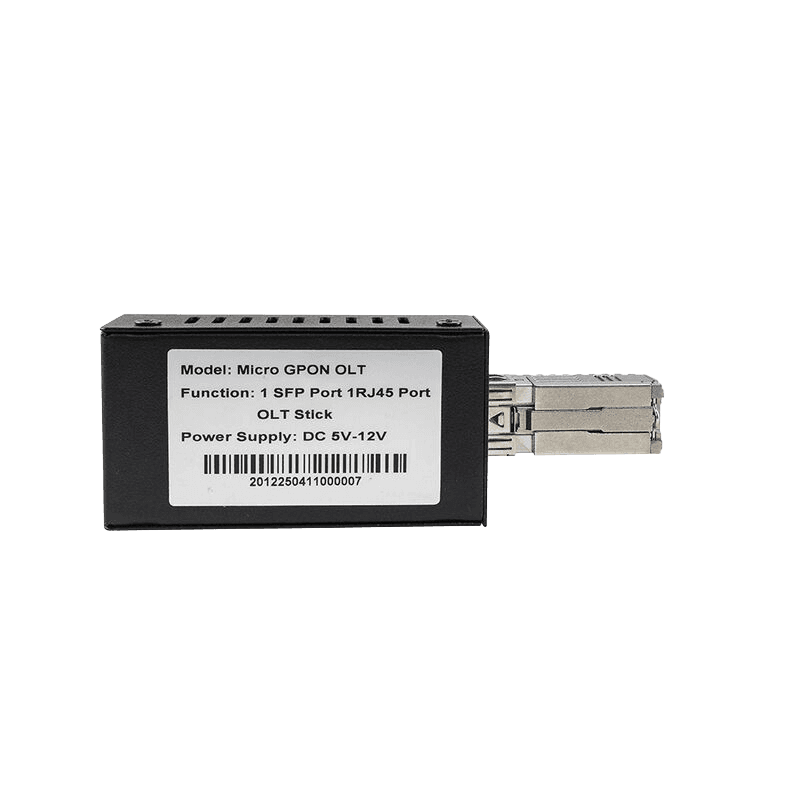

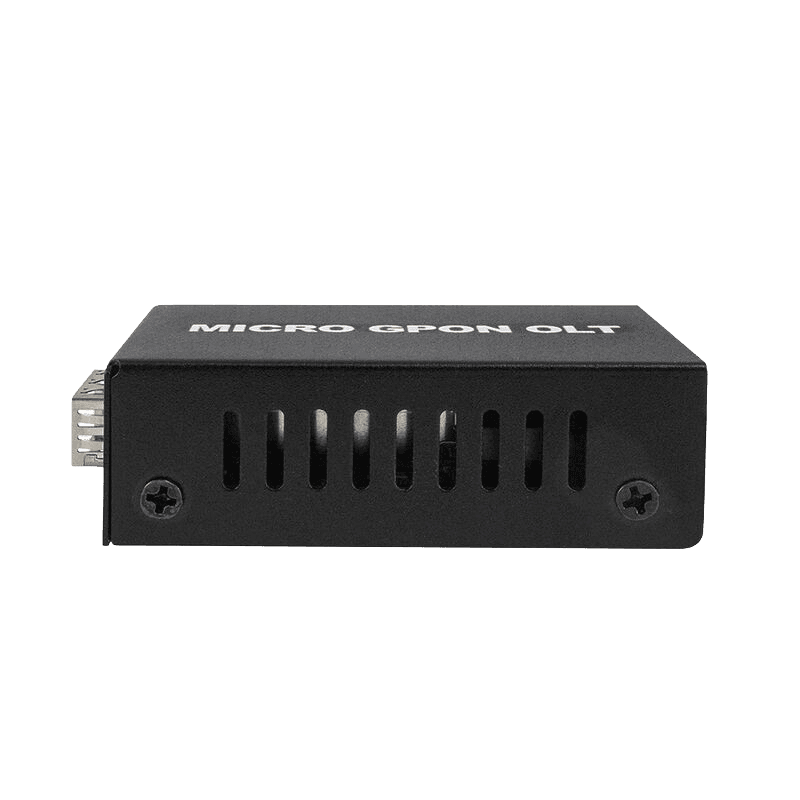

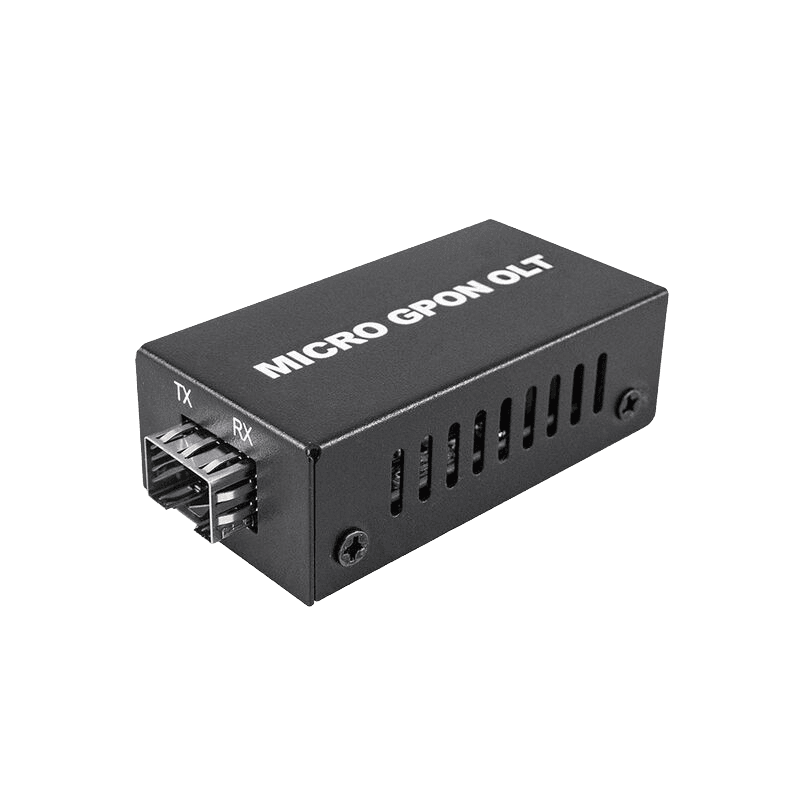

HT-VOLT32 is a Mini GPON OLT Stick designed for rapid network transformation from traditional to all-optical networks. Built in an SFP+ form factor, it’s a perfect solution for small ISP deployments, CCTV projects, and home fiber networks.

🔧 Key Features:

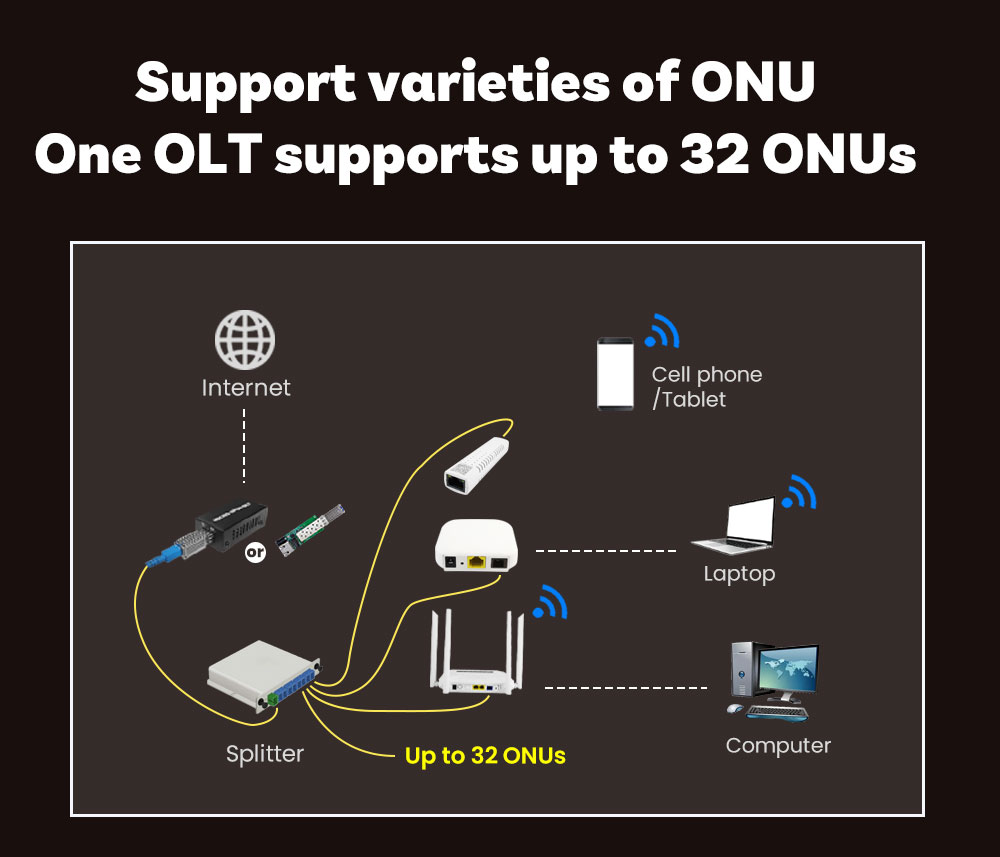

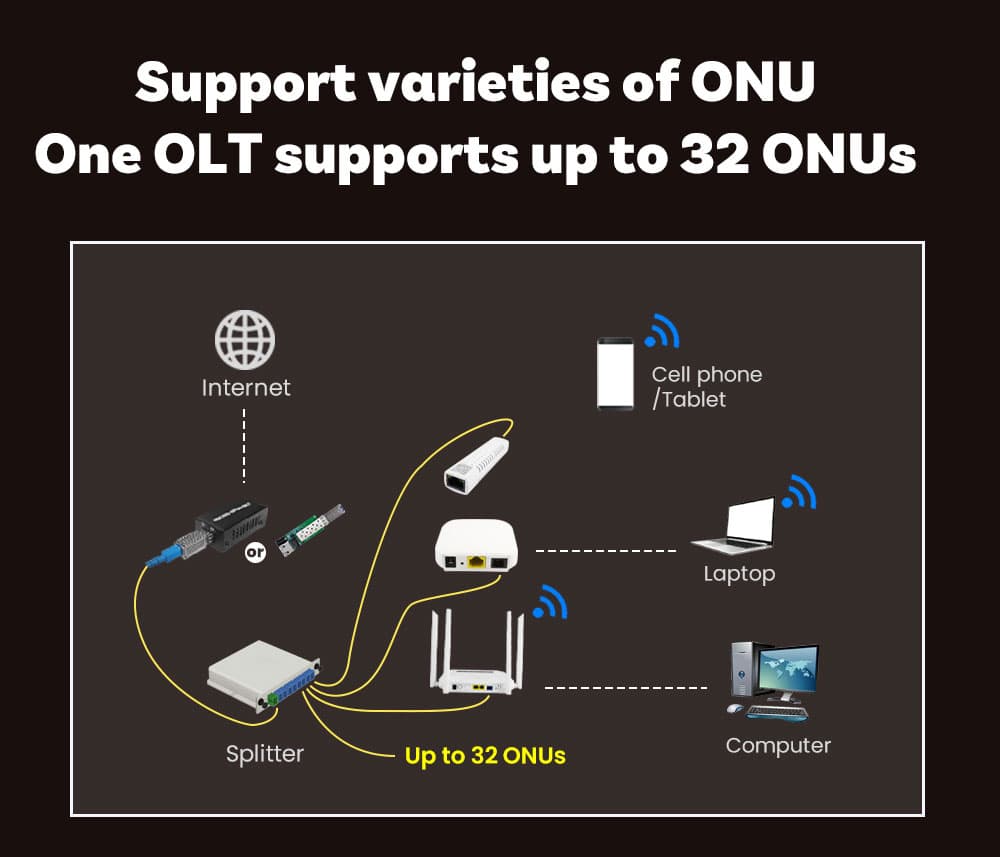

• 32 ONU Capacity: Supports up to 32 connected ONUs simultaneously.
• High-Speed Transmission: Downlink at 2.5Gbps and uplink at 1.244Gbps.
• 2dbm Output Power: SC/UPC interface for GPON fiber connectivity.
• 8KM Coverage: Ideal for compact city or rural rollouts.
• Plug & Play: No complex setup – works out of the box.
• Transparent VLAN: Supports pure bridge mode, SVLAN, and CVLAN.
• Broad Compatibility: Works with any brand of XPON or GPON ONU.
• PC Management Software: Easily manage OLT and registered ONUs without network expertise.
• Rugged Design: Operates between -40°C to 85°C, and 5% to 95% humidity.
• Low Power: Consumes less than 2.5W.

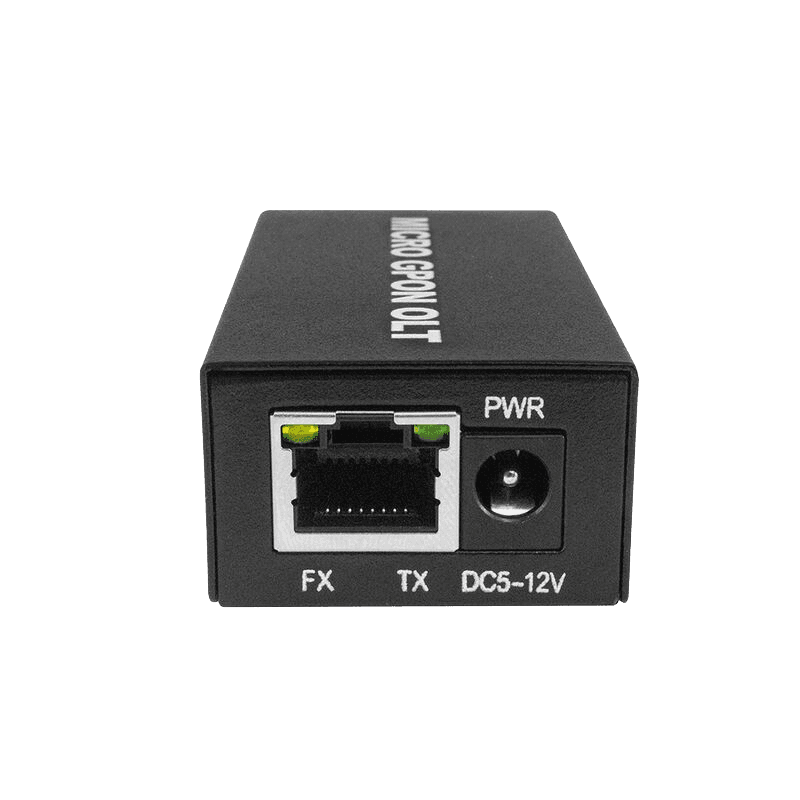

💻 Interface:

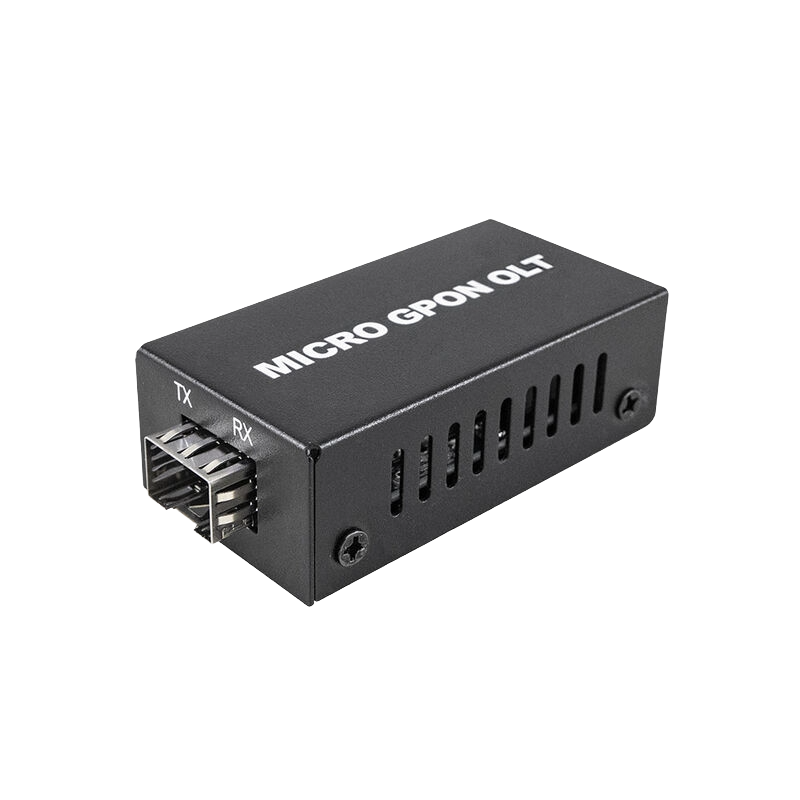

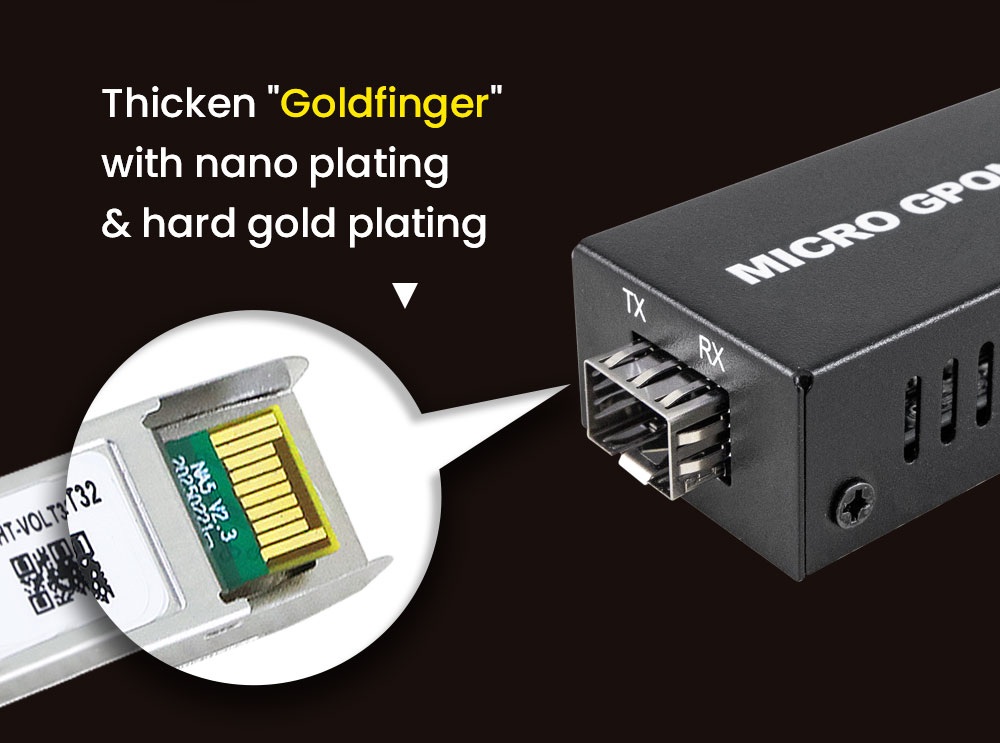

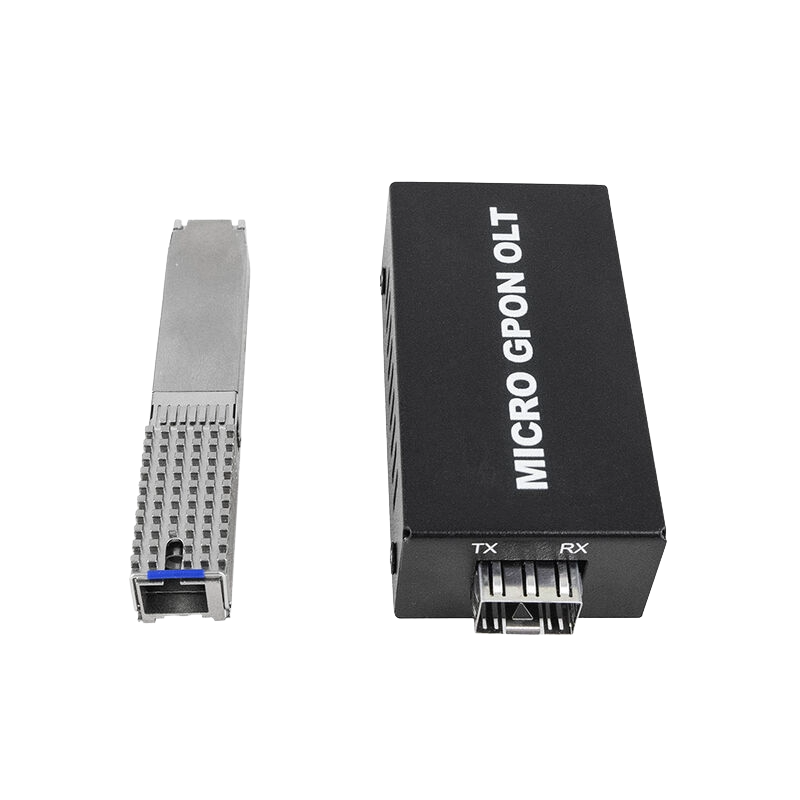

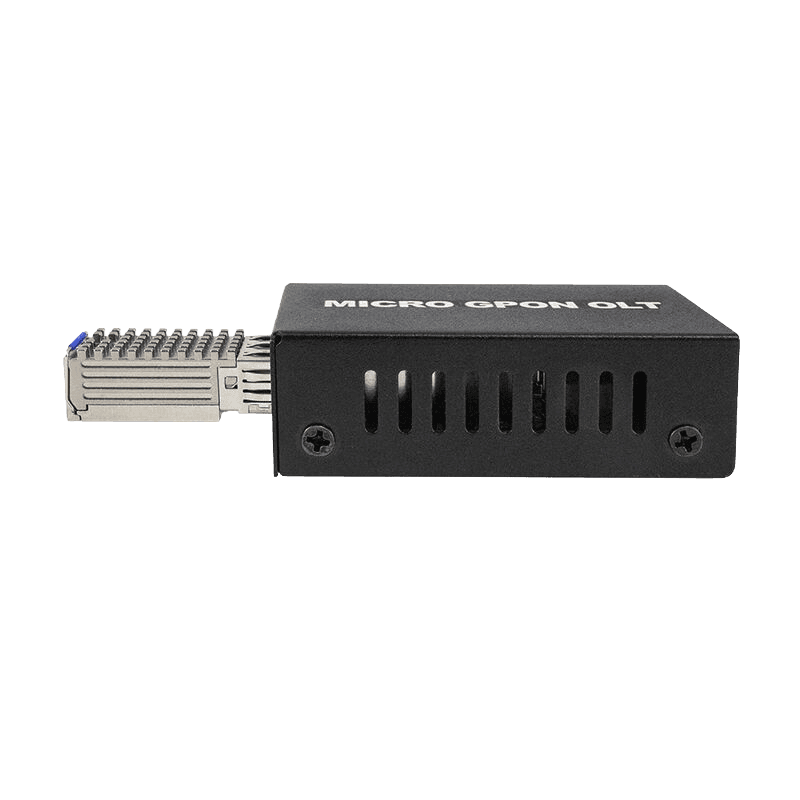

• Form Factor: SFP+
• Optical Port: SC UPC
• Supports: Hot-plugging
• Compatibility: Fully compatible with third-party switches, firewalls, and routers

📦 Included:

• 1x MINI GPON OLT Stick (HT-VOLT32)
• Free management software (Windows PC)
• User manual

https://youtu.be/Ur65VD4-zhk
