Mellanox ConnectX3 40GbE Dual Port QSFP+ Network Card
Mellanox ConnectX3 40GbE Dual Port QSFP+ Network Card
Mellanox ConnectX3 40GbE Dual Port QSFP+ Network Card
Mellanox ConnectX3 40GbE Dual Port QSFP+ Network Card
Mellanox ConnectX3 40GbE Dual Port QSFP+ Network Card
Mellanox ConnectX3 40GbE Dual Port QSFP+ Network Card
Mellanox ConnectX3 40GbE Dual Port QSFP+ Network Card
Mellanox ConnectX3 40GbE Dual Port QSFP+ Network Card
Mellanox ConnectX3 40GbE Dual Port QSFP+ Network Card
Mellanox ConnectX3 40GbE Dual Port QSFP+ Network Card

Mellanox ConnectX3 40GbE Dual Port QSFP+ Network Card

Original price was: ₹19,000.00.Current price is: ₹15,000.00.

100 in stock

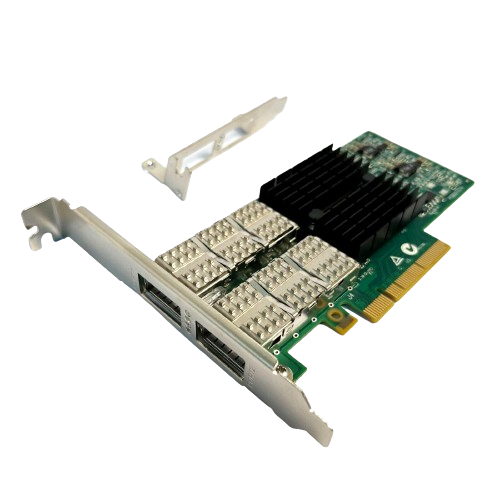

Enhance your network performance with the Mellanox MCX314A-BCBT Dual-Port ConnectX®-3 40GbE Adapter. This high-bandwidth network interface card features dual 40 Gigabit Ethernet ports and PCI Express 3.0 x8 interface, ensuring low-latency connectivity for enterprise data centers and high-performance computing environments

Categories:
, ,
Tags:
, , , , , , , , ,
SKU: 548457894-1-1

Description

The Mellanox MCX314A-BCBT is a high-performance dual-port network interface card designed to meet the demanding needs of modern data centers and high-performance computing environments. Leveraging Mellanox’s ConnectX-3 technology, this adapter delivers exceptional bandwidth and low-latency Ethernet connectivity, enhancing server and storage application performance.

Key Features:

  • Dual 40 Gigabit Ethernet Ports: Provides two QSFP+ ports, each capable of 40Gbps, ensuring high-speed data transfer and efficient network performance.
  • PCI Express 3.0 Interface: Utilizes an x8 lane PCIe 3.0 interface, offering high throughput and compatibility with contemporary server architectures.
  • Enhanced Network Performance: Increases available bandwidth while reducing CPU transport load, particularly beneficial in virtualized server environments.
  • Advanced Protocol Support: Supports a range of networking protocols, including IEEE 802.3ae, 802.1Qau, 802.1Qbg, 802.3ba, 802.1Qaz, 802.1Qbb, 802.3ad, 1588v2, 802.3az, and jumbo frames up to 9.6KB.
  • Quality of Service (QoS): Offers advanced QoS features, enabling traffic prioritization and efficient bandwidth allocation for critical applications.

Technical Specifications:

  • Manufacturer: Mellanox Technologies
  • Model Number: MCX314A-BCBT
  • Ethernet Ports: Dual 40GbE QSFP+
  • Host Interface: PCI Express 3.0 x8
  • Form Factor: Plug-in card with full-height bracket
  • Dimensions: Height: 2.7 inches; Width: 5.6 inches

Applications:

Ideal for enterprise data centers, high-performance computing clusters, and embedded environments, the MCX314A-BCBT enhances performance in applications such as clustered databases, web infrastructure, and high-frequency trading. By increasing bandwidth and reducing latency, it enables faster data access, real-time responsiveness, and supports more users per server.

Upgrade your network infrastructure with the Mellanox MCX314A-BCBT to achieve superior Ethernet connectivity and meet the demands of today’s data-intensive applications.
