Original price was: ₹150.00.₹65.00Current price is: ₹65.00.
100 in stock
Get high-performance data transmission with our SC to SC Single Mode 3mm Fiber Optic Patch Cable. Featuring low insertion loss, high return loss, and LSZH jacket for durability and safety. With CE/RoHS certification and compliance with industry standards, ensure reliable connectivity in diverse environments. Available in customizable lengths and configurations. Order now for seamless fiber optic connections!

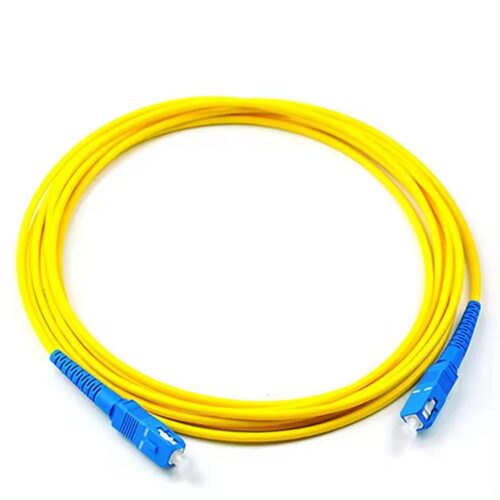

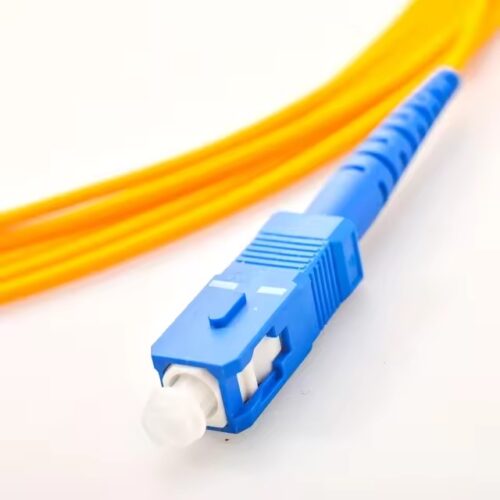

The SC to SC OS2 Single Mode Fiber Optic Patch Cable is designed for high performance fiber optic connections. It features low insertion loss, high return loss, and excellent endface geometry, ensuring reliable data transmission over long distances. The cable is constructed with OS2 9/125um singlemode fiber (SMF) and SC male connectors on both ends. It has a 3.0mm LSZH jacket, providing durability and flexibility while maintaining low smoke characteristics. With attenuation rates of <0.35 dB/km at 1310 nm and <0.22 dB/km at 1610 nm, this cable ensures optimal performance for various applications. It operates within a temperature range of 20°C to +70°C and is suitable for installations in diverse environments. CE/RoHS certified and compliant with ISO/IEC61754, EN 50399, and EN 50575 specifications, this cable guarantees compatibility with other equipment and meets industry standards for safety and performance.
**Features:**
Low insertion loss, high return loss
Good repeatability and exchangeability
High temperature stability
Excellent endface geometry
LSZH jacket for lower smoke characteristics
Supports 1310nm and 1610nm wavelengths
Attenuation rates of <0.35 dB/km (1310nm) and <0.22 dB/km (1610nm)
Operating temperature range: 20°C to +70°C
